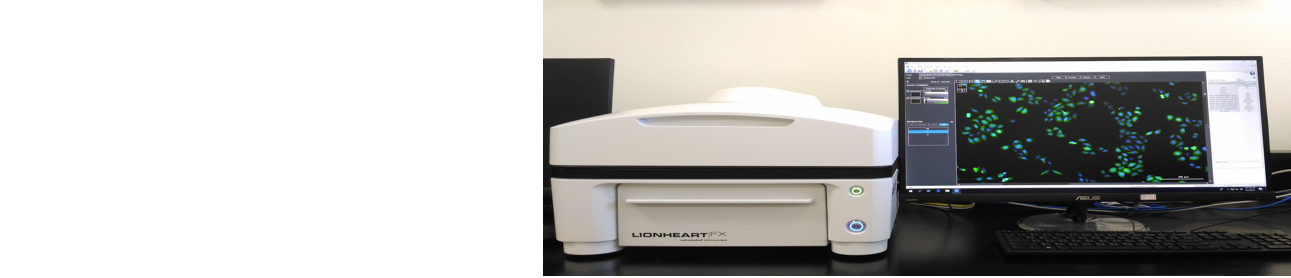

Automated camera system for cell fluorescence, bright field, high contrast bright field and color bright field. Perform image processing such as stitching, overlaying, or background removal. Final analysis to obtain qualitative or quantitative data.

Specifications are as follows：
1.Light source：High power LED。
2.Focus mode: Image autofocus
3.Camera resolution: 16bit grayscale Sony CMOS
4.Objective：2.5X/0.12, 4X/0.13, 10X/0.3, 20X/0.45, 40X/0.6。
5.Filter：DAPI 377/50X, GFP 445/45X, Texas Red 586/15X, CY5 628/40X
6.Environment control：Room temperature to 400C.
7.Automatic displacement platform：Observable 6-384 plate、slide、chamber slide、3.5 cm dish、6 cm dish。
8.Image processing and analysis report using Gen5 software

Principle of use：
1.Open the Chang Gung system to make appointments during business hours.
2.Participate in the relevant education and training. After pass the operation assessment, then you can make an appointment to use it by yourself.
3.Please visit the Reservation System to make an appointment.
4.Instrument usage fee：

Fee list	CGU Labs	Non CGU Labs
Use by userself	50 NTD/hour	--
Entrust to use	200 NTD/hour	1000 NTD/hour

5.After using it, please fill in the usage record form.
6.For detailed usage rules, refer to [LionHeartFX Usage Points].
7.Instrument location : First Medical Building, 9th Floor, Area A, Room 0906.
8.Contact: Ms. Tsui-chih Hsieh      Tel:(03) 211-8800 ext. 5191      Email:iris@mail.cgu.edu.tw.
